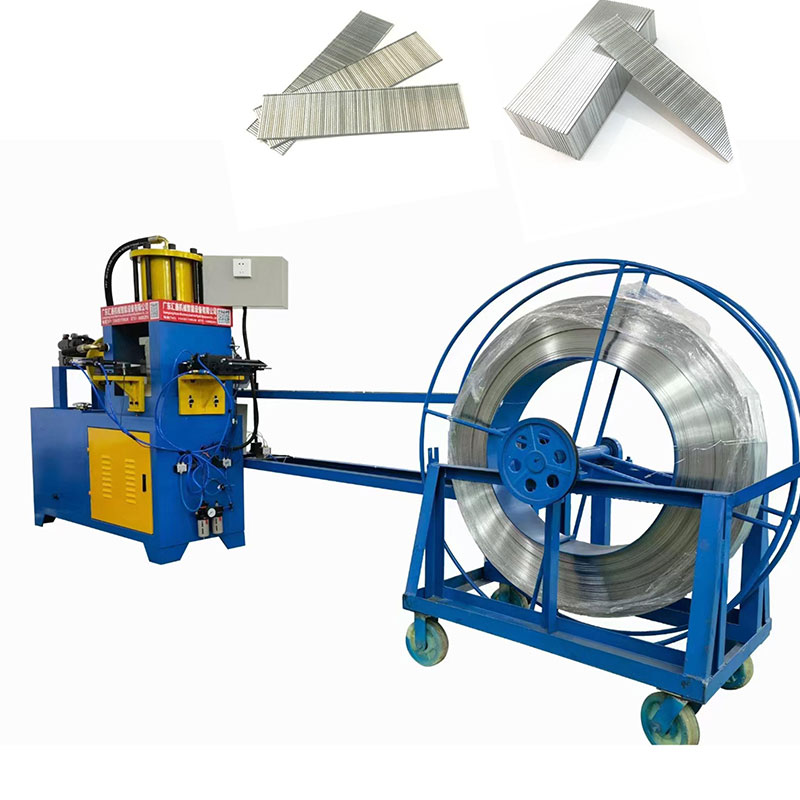

Straight Row Nail Forming Machine

Straight Row Nail Forming Machine

The main parts of this machine adopt advanced brand parts which is the brain of this machine,commandthe coordinated operation of various systems,imported feeder(made in Taiwan), both use for F and Tseries ,120 pieces per minute, high speed, For F series can be made 130-150 pieces per minute. Themould adopts the spring three-guide-column mould frame for positioning,and the performance is moreaccurate and more stable.The 2021 nail molding machine has been upgraded to high-profile,Pneumaticmotor feed, lower noise, accurate feeding, abandoning the traditional feeding cylinder. Cooling system alsohas a new upgrade, into water-cooled air-cooled dual cooling system, the machine faster, more efficient.The operating system also adopts PLC control.

Production Requirements:

1. Electricity: 3 Phase. One set machine need provide electricity Lord for 8-10KW.

2. The ground requirements: Cement ground. One set machine cover an area of 6 meters long, 2 meters wide.

3. Hydraulic oil (200-250 kg).

4. Air pump (0.9 cubic meters of gas per minute, working pressure of 8-10 kg).

5.Material use:Galvanized wire plate by roll.
